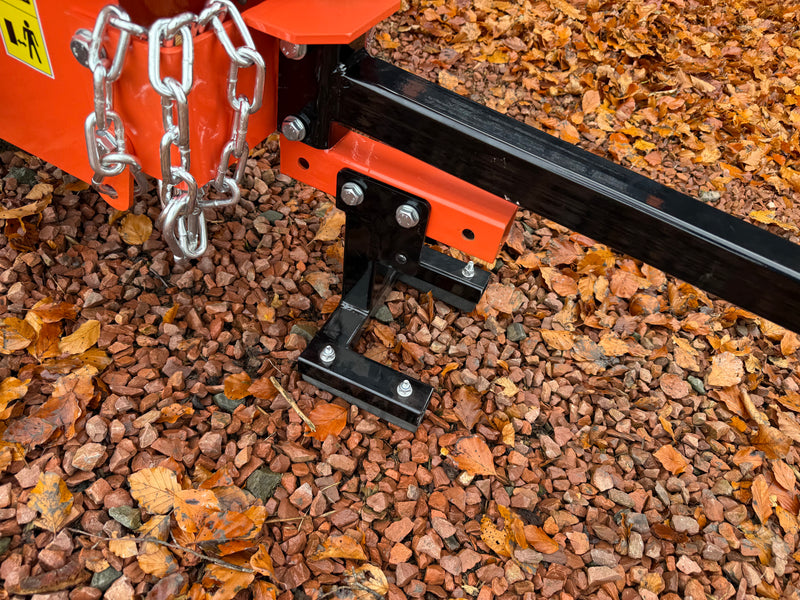

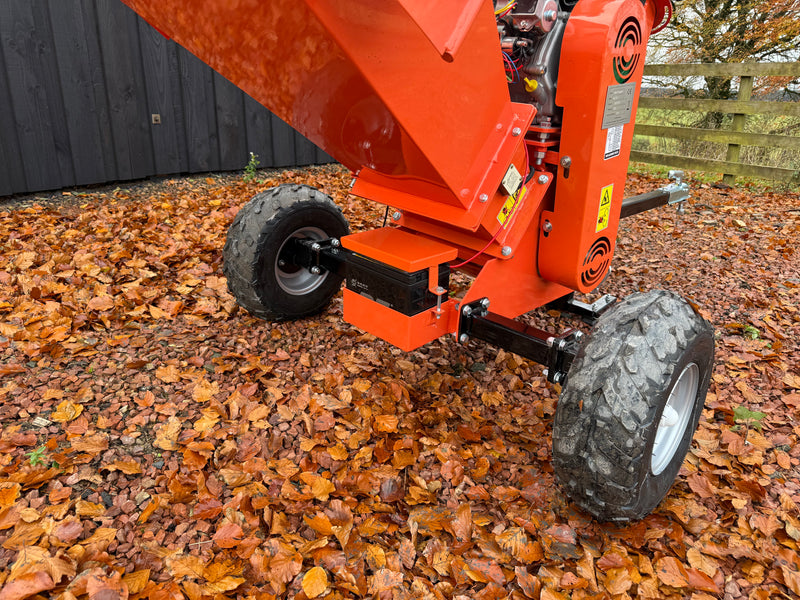

This new models features an updated chipping drum and blades meaning better and more constant chipping and greatly improved airflow. This new model also comes with an extended axle for more stability. The extended axle can be taken off to fit into tighter areas.

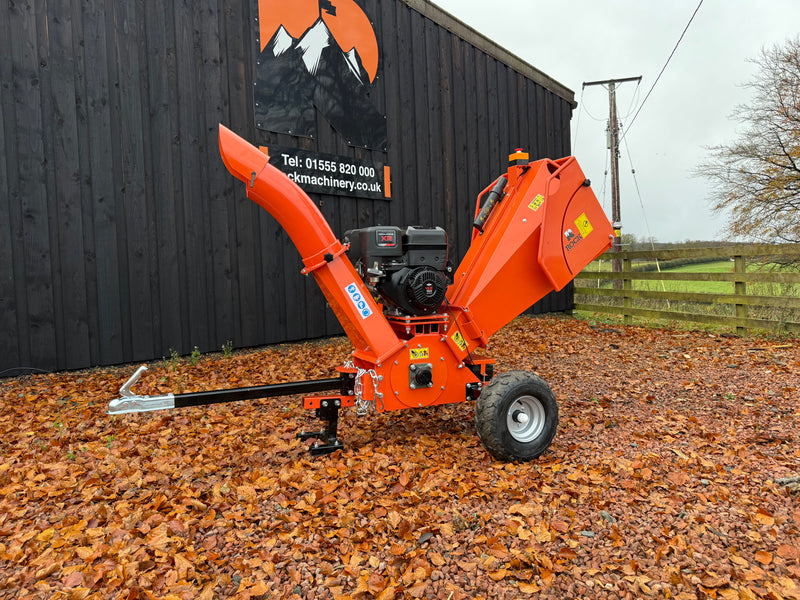

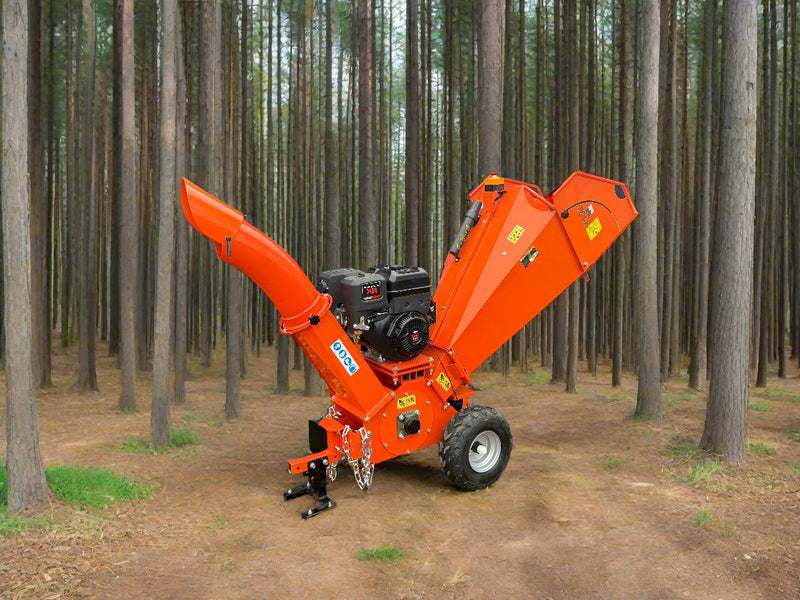

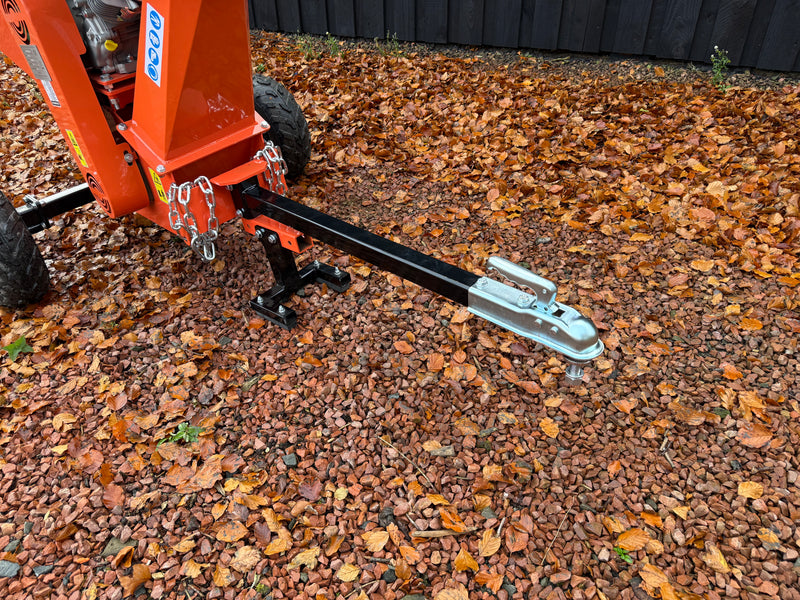

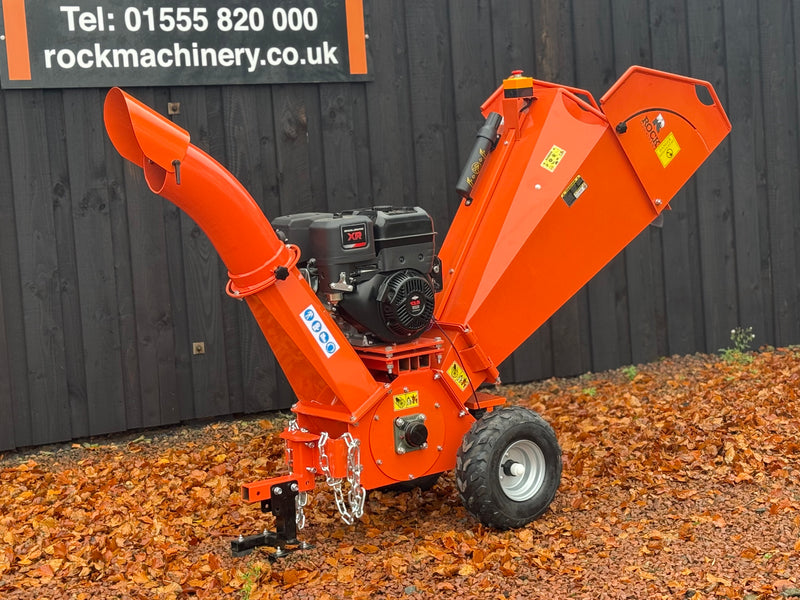

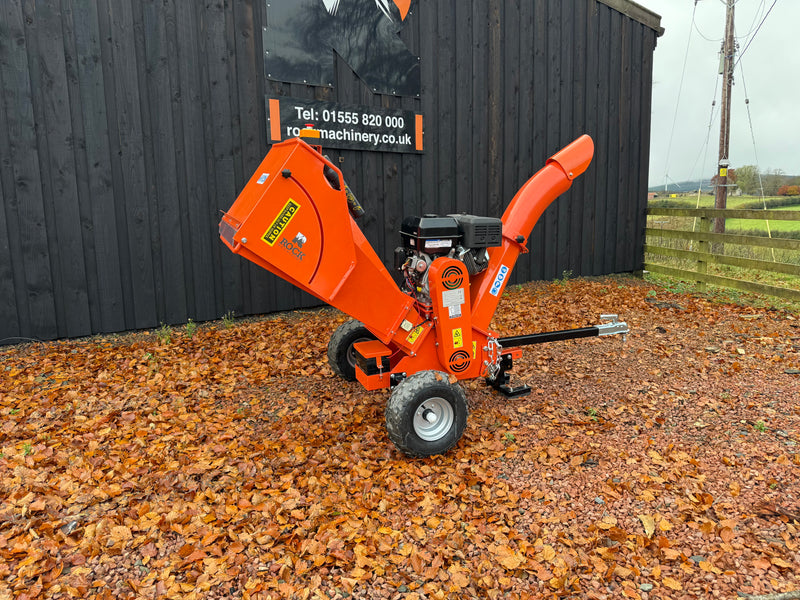

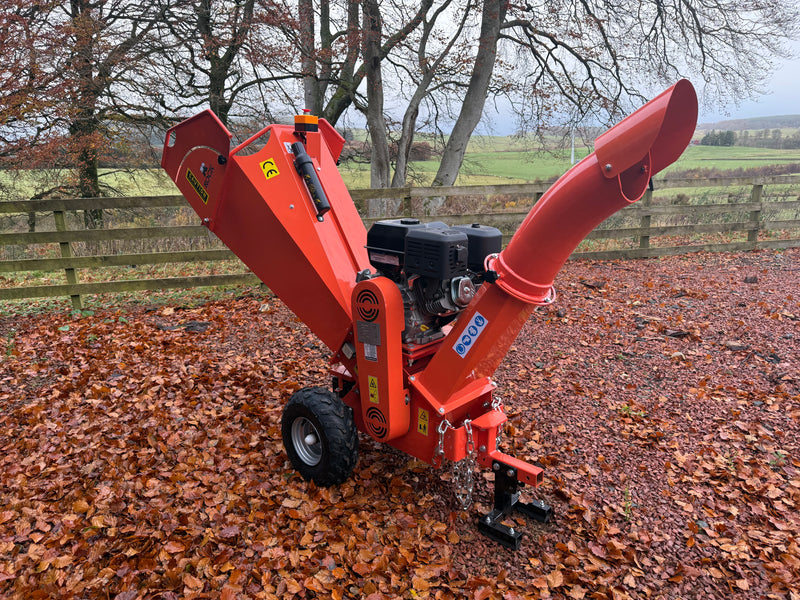

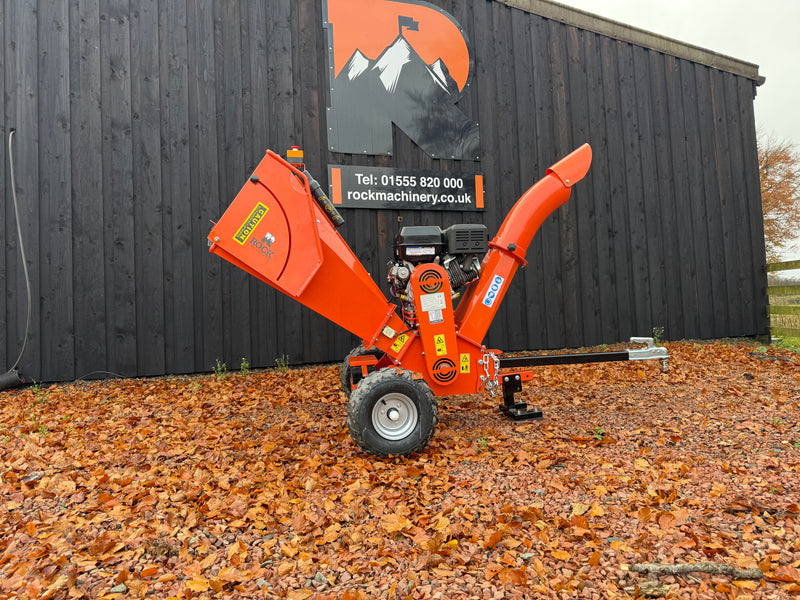

The RX-13 Chipper is our latest engine driven chipper. With a heavier and larger design but still easy to manoeuvre with a 50mm ball hitch and larger tyres. The 13hp commercial briggs and stratton engine is mounted directly in the middle of the machine with weight distribution in mind. This means the chipper can be moved easily by hand and the width of the chipper is 80cm so you can still get into those hard to reach places.

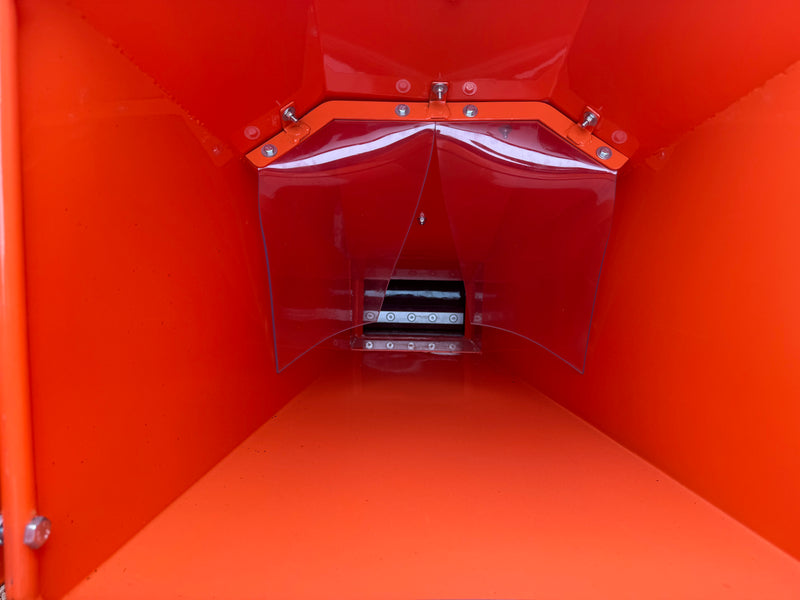

The chipping drum and blade set up is based on our venom 13hp model with two blades and fixed counter blade. This system works perfectly with the angled gravity feed input chute, once the blades take hold of a branch the chipper will start to pull the branch in for chipping. A robust and larger drum design means the RX-13 can cope with branches around 12cm in diameter (approx).

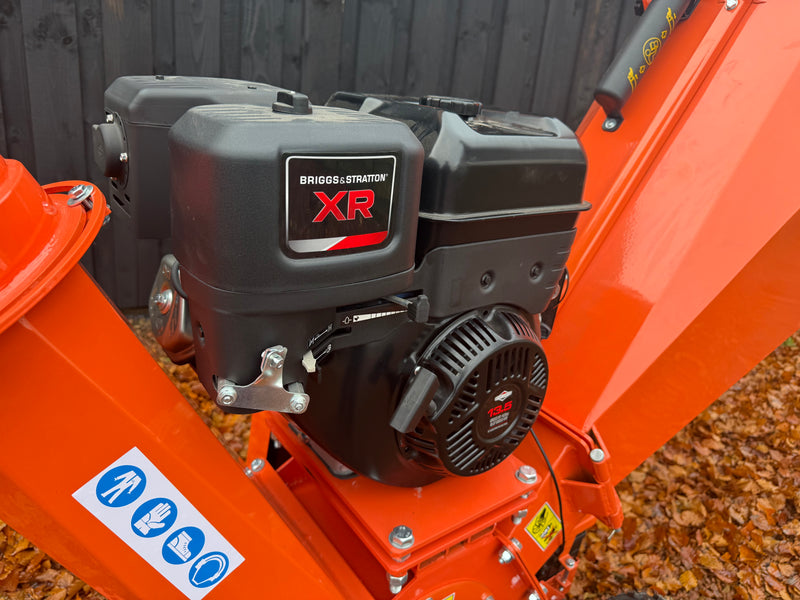

As previously mentioned the RX-13 is powered by a 13hp briggs and stratton OHV engine with electric start.

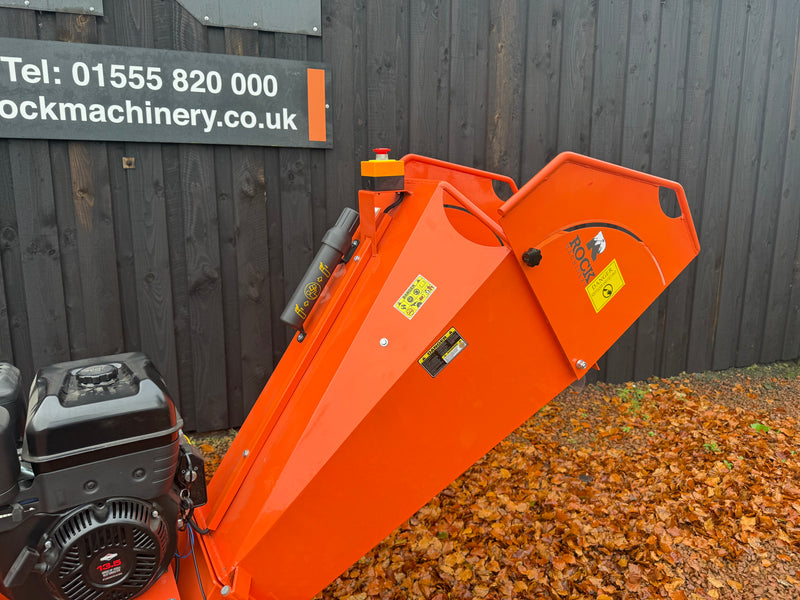

A Safety cut off button is located on the top of the input chute system to avoid injury or damage to the machine.
Width without Extension 76mm. With Extension 120mm. Length 200mm. Height 150mm
Tyre size 16x8.7
- Max chipping diameter: 12cm (Approx)
- Engine: 13hp briggs and stratton with key start
- Drive: Dual belt and pulley system
- Blades: 2 hardened steel blades with counter blade (anvil)
- Feeding system: Gravity feed
- Chip size: 2-3 cm

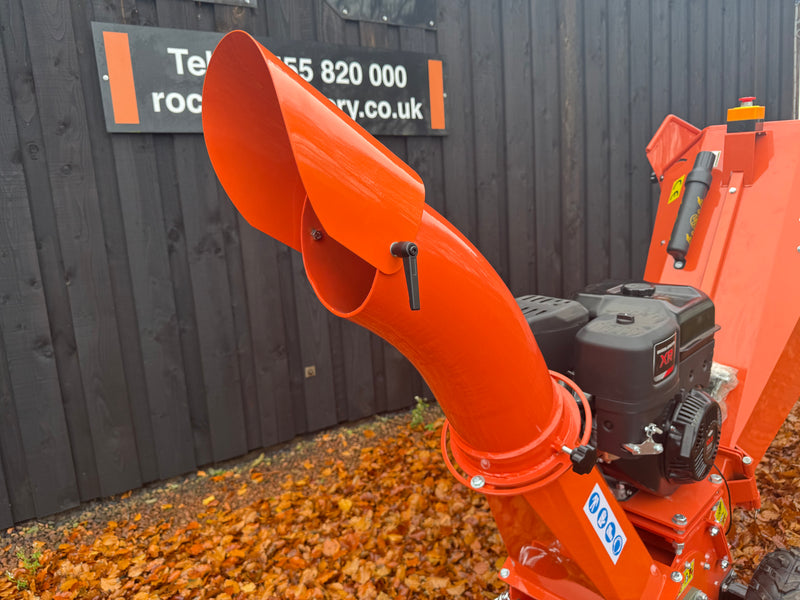

- Exit chute rotation: 180 degrees
- Feeding hooper length: 120cm WEIGHT APPROX 190KG Width 80cm
