After many conversations with both customers and professionals we all agree that the venom 22ton is one of the best log splitters on the market. So we have taken the same robust design and made the V - Series ( V stands for value). This model doesn't have all the features the venom 22ton has but operates the same way and is our entry level 22ton log splitter.

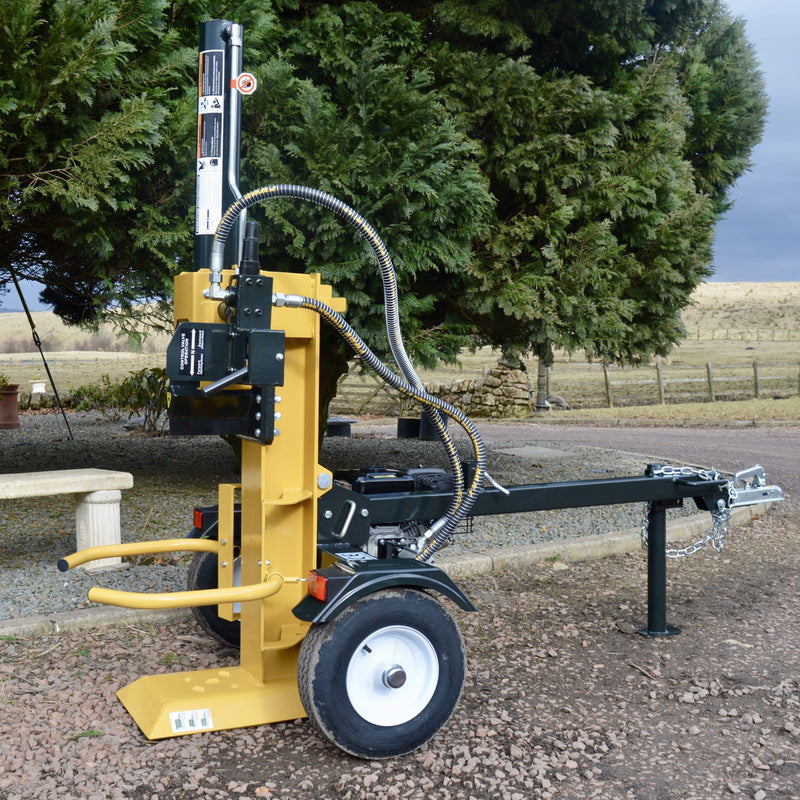

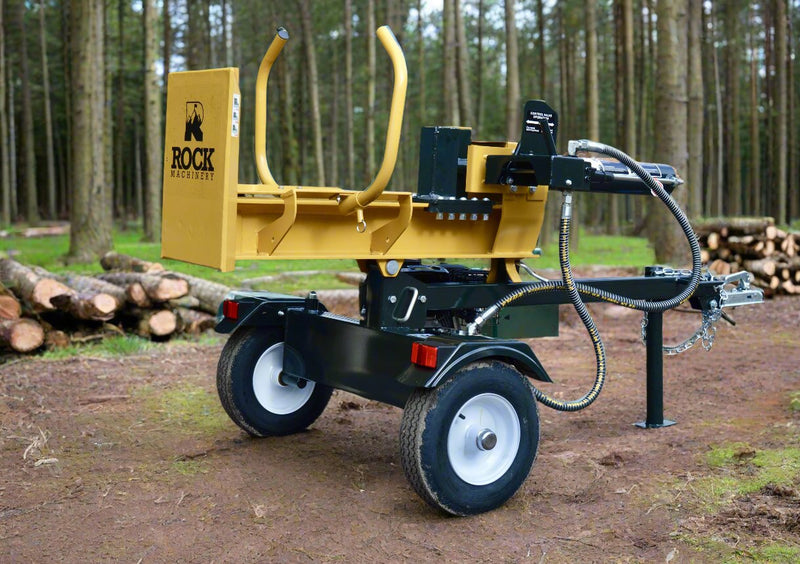

This machine has a 12 second cycle time and can be used horizontally for splitting standard diameter logs and vertically for larger tree rounds that physically cannot be lifted to the horizontal splitting height.
Powered by a 6.5 hp "JD" engine.
Fitted with a 50mm ball hitch
The simple two handled ram operation which conforms fully with E.U Health and safety regulations and features an auto return ram system that allows the ram to return automatically or be stopped anywhere on the cycle to decrease splitting time.
Dimensions are approx as follows
Height 118 cm
width 120 cm
length 220 cm
22ton max splitting force
23″ max log length
16″ tyres ( not for road use )
12 second cycle time
6.5 JD engine
11 gpm two stage pump
7″hardened steel splitting head
auto return valve
|Dimensions||220 × 120 × 118 cm|
