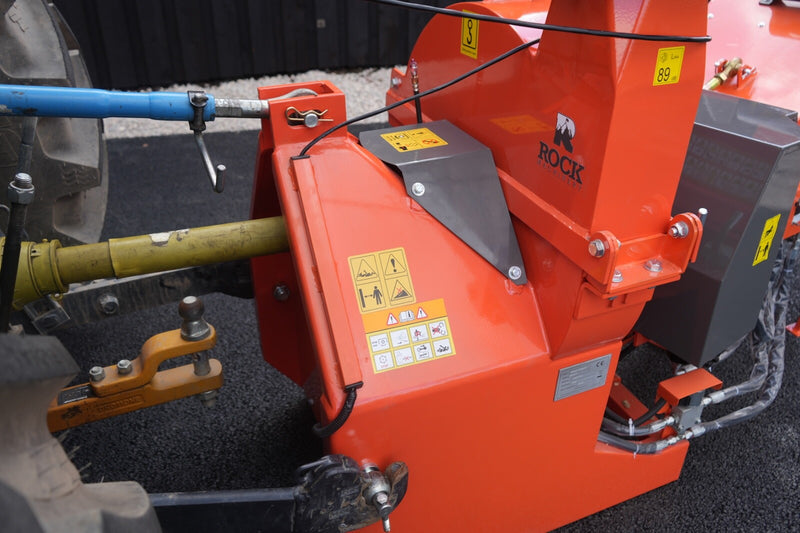

Venom RX177 PTO Chipper

Rock Machinery RX177 PTO Chipper

Introducing the new updated RX177 PTO Chipper.

The new 2025 model has been updated with a new electrical system controlling the indeed rollers to allow for a simpler operation. The design has also changed slightly to be more compact and feature added user friendly updates like front supports and rear chute handles.

For this new model the tractor needs to have a 12v electrical supply as the chipper comes with a 7 pin plug to power the electrics.

Take the hassle out of clearing branches and brush with the RX177 PTO Chipper—a powerful and efficient wood chipper designed for tractors with a PTO system. Whether you're managing a smallholding, estate, or woodland area, this chipper delivers reliable performance and professional results every time.

Fitted with a large flywheel and twin reversible blades, the RX177 is capable of processing branches up to 6.8 inches (175mm) in diameter. Its direct PTO drive means fewer moving parts, less maintenance, and consistent power delivery when you need it most.

Key Features:
✅ PTO-driven – Compatible with most tractors
✅ 6.8” (175mm) chipping capacity – Handles larger branches with ease
✅ Four reversible blades – Stay sharper longer and easy to change
✅ Heavy-duty flywheel – Keeps the chipper running smooth and steady
✅ Adjustable discharge chute – Direct chips where you need them

Built with durability in mind, the RX177 is perfect for turning waste into useful wood chips for mulching, composting, or easy disposal. It’s the ideal solution for anyone looking to keep their property tidy and make the most of their tractor's potential.

Turn branches into chips—quickly, efficiently, and with zero fuss.

Tractor requires to have at least 50 HP for this Chipper.

TECHNICAL DATA

Length x width x height 2750 mm x 1630 mm x 2280 mm

Max. timber dimensions

timber – 175 mm

Cutting disc 740 mm (single)

Infeed dimensions 178 mm x 310 mm

Infeed system Double horizontal infeed motors. Large pulley: 180 mm. Small pulley: 120 mm

Infeed hopper next to drive rollers 180 mm x 310 mm

Infeed hopper opening 660 mm x 700 mm

RPM 540/1000 rpm

Wheel drive Direct. PTO shaft with shear bolt.

Power requirement 60–70 hp (45–52 kW), Tractor 45–100 hp (33–75 kW)

Hydraulic flow 13-27 l/min

Hydraulic oil tank 24 litres

Knife 4 hardened double-sided blades, 1 counter blade

Chipping disc size 740 mm (Chipping disc weight 95 kg)

3-point linkage Cat. 1 & 2

Discharge chute Adjustable 290° with adjustable ejector angle

Ejection hopper Height 2,280 mm

Weight 560 kg

*Please be aware that this chipper is not suitable for small branches / garden waste. This chipper is designed to cope with larger branches minimum diameter 3" approx*
